Pinta Acoustic

We are the official distributor of the best-in-class insulation products from Pinta Acoustic AKA Sonex previously named Illbruck. Read on for the insulation foams and sound panels you’re interested in.

Please choose a Pinta Acoustic product line you’re looking for. We distribute all the existing products from the brand and will be happy to give you a free quote on the phone or by email.

  • Acoustic Wedges
  • Adhesive
  • Awnings
  • Baffles
  • Barriers/Composites/Foam
  • Ceiling Tiles
  • Ceiling Clouds
  • Noise Control Curtains
  • Wall Panels
  • willtec

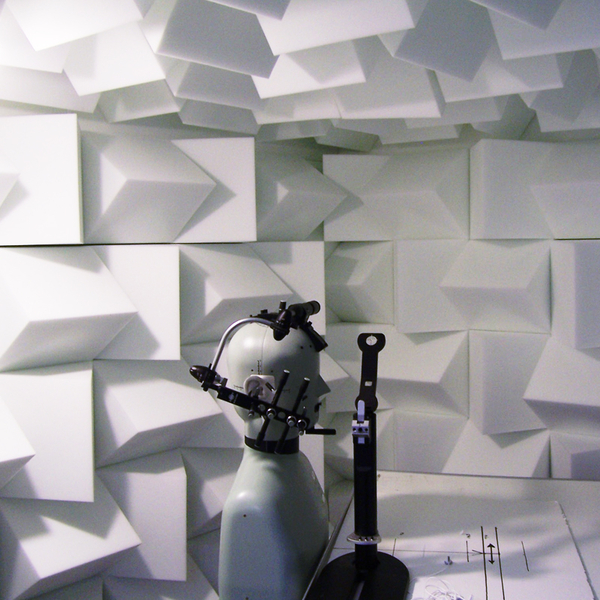

Acoustic Wedges

SONEXmax™ Wedges
SONEX Max Wedges can be up to 61” thick if a 63 Hz or higher cut-off frequency is needed for measurement according to ISO 3745 precision method. The willtec foam used to manufacture SONEX Max Wedges also has advantages in that they are lightweight, easy to install and provide complete sound absorption at all frequencies, even the very high frequencies.

SONEX Max Wedges have been used in test facilities of Airbus Industries and NASA Langley Research Center.

SONEX® Acoustic Wedges

Sonex Acoustic Wedge

Material Open-cell melamine-based foam
Density 0.5 to 0.7 lbs./cubic ft. (ASTM D3574-77)
Long-Term Service Temperature 302 degrees F
Fire Resistance Class 1 per ASTM E 84 (all finishes)
Meets UL 1715 (willtec natural)
Flame Spread per ASTM E 84 Natural: 5
Painted: 10
HPC-coated: 15
Smoke Density per ASTM E 84 Natural: 50
Painted: 10
HPC-coated: 200
Microbial Growth Passes UL 181, section 11
Fungus Resistance Rating 0 per ASTM G21
Finishes Natural, painted or HPC-coated



SONEXsuper™ Wedges
Designed to be used in situations where low-frequency issues are a problem, SONEX Super Wedges are most often found in anechoic test chambers. These 12″x12″ wedges are 6 inches thick and feature an exaggerated, yet symmetrical, anechoic wedge pattern.

SONEX Super Wedges can dramatically improve the accuracy of sound measurements by eliminating bounce-back sounds such as echo, feedback and resonances.

SONEX® Super Wedges

Material Open-cell melamine-based foam
Density 0.5 to 0.7 lbs./cubic ft. (ASTM D3574-77)
Long-Term Service Temperature 302 degrees F
Fire Resistance Class 1 per ASTM E 84 (all finishes)
Meets UL 1715 (willtec natural)
Flame Spread per ASTM E 84 Natural: 5
Painted: 10
HPC-coated: 15
Smoke Density per ASTM E 84 Natural: 50
Painted: 10
HPC-coated: 200
Microbial Growth Passes UL 181, section 11
Fungus Resistance Rating 0 per ASTM G21
Finishes Natural, painted or HPC-coated

Back To Top

Adhesive

Illbruck Architectural Products has formulated acouSTIC™, a special water-based adhesive specifically designed for our foam products.
Each 10.5-ounce tube will adhere approx. 32 sq. ft. of any product (SONEX® Panels, SONEX Wedges, PROSPEC® Foam, CONTOUR® Ceiling Tiles). If installing on the ceiling, more adhesive may be required and should not follow 32 sq. ft./tube rule. Each tube fits into standard caulking gun.

acouSTIC Adhesive
acouSTIC AdhesiveFor the installation of CONTOUR® Ceiling Tiles, FABRITEC Wall Panels and SONEX® Panels, pinta acoustic  has formulated acouSTIC, a special water-based adhesive specifically designed for our foam products.

  • Non-toxic, water-based adhesive.
  • Easy clean-up with soap and water.
  • Each 10.5 ounce tube installs up to 32 square feet of SONEX Panel.
  • Available in case quantities of 24 tubes per case.
  • Tube fits standard caulking guns or can be used with pinta’s applicator gun.

This non toxic adhesive makes installation hassle-free and provides a strong, permanent bond when adhering SONEX Panels to walls or ceilings.

Back To Top

Awnings

WHISPERWAVE Awnings

  • WHISPERWAVE™ AwningsCurved accent acoustical control products
  • Exceptional acoustical control across all frequencies
  • Lightweight and easy to install

Applications

  • Classrooms
  • Cafeterias
  • Entertainment facilities
  • Offices, libraries
  • Religious facilities
  • Other large open areas

Back To Top

Baffles

pinta offers a variety of SONEX® Baffles for use in most any interior space in need of quality acoustical control. Select one of the links below to find out more about our baffle options.

SONEX® Clean Baffles

  • SONEX® Clean BafflesWashable, cleanable and durable
  • Sound absorption to reduce reverberation or echo
  • Easy to install ceiling tiles, wall panels and baffles
  • willtec® core is Class 1 fire-rated

Applications

  • Bottling and food processing plants
  • Clean rooms
  • Food preparation areas

SONEX® One Baffles

  • SONEX® One BafflesSoftly sculpted surface pattern on both sides
  • Designed to hang from ceilings in large, open rooms
  • Excellent sound absorption across all frequencies
  • Baffle size of 24″x48″ in 2″-3″ thickness

Applications

  • Multi purpose rooms and gymnasiums
  • Large classrooms or music rooms
  • Manufacturing facilities
  • Aquatic centers and indoor pools
  • Any large, open room with reverberation problems

SONEXvalueline™ Baffles

  • SONEX® Valueline BafflesIdeal for production areas, gymnasiums, auditoriums
  • New hanging system saves labor time
  • Easy installation from side walls or ceiling
  • Choice of horizontal or vertical baffle configuration

Applications

  • Multi purpose rooms, gymnasiums, large classrooms or music rooms
  • Manufacturing facilities
  • Aquatic centers and indoor pools
  • Any large, open room with reverberation problems

WHISPERWAVE™ Baffles

  • WHISPERWAVE™ BafflesCurved accent acoustical control products
  • Exceptional acoustical control across all frequencies
  • Lightweight and easy to install

Applications

  • Classrooms
  • Cafeterias
  • Entertainment facilities
  • Multipurpose rooms
  • Indoor swimming pools
  • Offices, libraries
  • Religious facilities
  • Other large open areas

pinta RONDO™ Baffles

  • pinta RONDO™ BafflesVertical or horizontal configurations
  • Design flexibility
  • Exceptional sound absorption across all frequencies
  • Easy installation
  • Class 1 fire-rated

Applications

  • Reception areas
  • Conference rooms
  • Multipurpose rooms and gymnasiums
  • Aquatic centers and indoor pools
  • Music and classrooms
  • Manufacturing facilities
  • Stadiums
  • Nearly any interior space with reverberation or echo issues

Back To Top

Barriers/Composites/Foam

PROSPEC® Barriers

PROSPEC® BarriersPROSPEC Barriers are an ideal solution for isolating  noise and minimizing sound tranmission through walls and or ceilings.  Hang it like a curtain, weave it inside a wall cavity, or mount it over an existing wall to help contain noise. Three different styles are availble to best suite your application.

Reinforced barrier has an interior mesh-like material allowing it to be hung like a curtain around the noise source.  Office spaces use this barrier as a wall extension from the wall/ceiling junction up through the plenum to the deck. Install it as a partition between manufacturing cells or around machines to help prevent the noise from reverberating through adjacent areas.

Non-reinforced barrier is designed to be attached to walls, unrolled on top of suspended ceilings or woven between studs of a staggered-stud wall construction.

Clear barrier is a see-through curtain material engineered to block sound without blocking vision.  It is perfect for surrounding equipment and work areas where noise reduction is required and visual observation a must.

PROSPEC® Foam





PROSPEC FoamPROSPEC Foam is ideal for controlling noise at its source.  When used to line compartments, machine enclosures or airvents, these foam  panels help reduce the high noise levels by absorbing the sound energy around and within the space.  PROSPEC Foam panels can be adhered to a partition or wall facing the noise source to lessen the reverberation and sound reflections.  The HPC-coated, SONEX® Mini sculpted surface  is resistant to water, oils, and solvents.





PROSPEC Foam is a great noise reduction solution for applications such as  : boilers, pumps, compressors, HVAC equipment, generators, routers, and saws.



PROSPEC® Composite






PROSPEC CompositePROSPEC Composite combines the acoustical absorbtion benefits of PROSPEC Foam with  the noise containment capabilities of non-reinforced barrier into one product consisting of: a 1″ thick layer of willtec foam to absorb noise – followed by a 1/8″ thick noise barrier to contain noise and reduce sound transmission – backed with a willtec® foam  decoupler to provide air space between the barrier and the mounting surface for optimal noise containment.   These panels come standard with a SONEX Mini sculpted surface and a grey HPC-coated facing for easy clean-up.











PROSPEC Composite is a prefect fit when used: over sub-standard walls between manufacturing plant and offices – to line thin enclosures around machinery, air compressors, or similar noise sources – or in engine compartments.


Back To Top

Ceiling Tiles

SONEX® Clean Ceiling Tiles

  • SONEX® Ceiling TilesWashable, cleanable and durable
  • Sound absorption to reduce reverberation or echo
  • Easy to install ceiling tiles, wall panels and baffles
  • willtec® core is Class 1 fire-rated

Applications

  • Bottling and food processing plants
  • Clean rooms
  • Food preparation areas

BIOLINE® Wood Ceiling Tiles

BIOLINE® Wood Ceiling TilesEnvironmentally friendly, BIOLINE Solid-Finish tiles contain 70 percent recycled material. Choose from custom or six standard real wood veneers including cherry (red and natural), beech, bamboo (natural and carmel) or maple in perforated or unperforated options.

BIOLINE Organic-Texture tiles reduce reverberation and echo by absorbing between 55 and 80 percent of the sound directed toward them. Made from 80 percent recycled material, Organic-Texture tiles are offered in custom or three standard wood shades of light, medium and dark to complement your décor.

Featuring a real-wood veneer on a color-matched core made from 100 percent recycled fiber, BOILINE Linear Wood Ceiling and Wall Tiles are manufactured using low-energy and advanced green chemistry.

SQUARELINE® Metal Ceiling Tiles

  • SQUARELINE® Metal Ceiling Tiles Expanded metal is made from galvanized, powder-coated steel.
  • Each tile has an acoustical backer available in white, light grey and black.
  • Sleek chrome, white or black metal compliments most interior designs, with tile size of 24″x24″, 24″x48″ and 48″x48″.
  • Class 1 fire-rated for smoke density and flame spread.
  • Installation in 15/16” grid systems is still quick and easy with one side of each tile having a notch cut out for directional purposes.
  • Excellent sound absorption qualities.

A design alternative to traditional linear or perforated metal ceilings, SQUARELINE Metal Ceiling Tiles are affordable and easily installed at virtually any stage of construction. These dramatic and versatile ceiling tiles are perfect for convention centers, stadiums, office complexes, theaters, museums and more. Custom options include tiles without the acoustical insert, special sizes or alternative color metal.

Back To Top

PHONSTOP™ Ceiling and Wall Tiles

  • PHONSTOP™ Ceiling and Wall Tiles Made from 100 percent recycled glass
  • Exceptional acoustical properties to reduce noise, reverberation and echo
  • Ideally suited for both interior and exterior applications
  • Two installation styles: direct apply using adhesive or lay-in pinta or any 15/16″ ceiling grid system
  • Impact, temperature, moisture, mold, pressure and acid resistant
  • Can be custom colored on-site using non-bridging paints
  • PHONSTOP Plaster provides a seamless appearance

Applications

  • Offices, schools, auditoriums and cafeterias
  • Sports centers, gymnasiums and indoor swimming pools
  • Staircases, hallways and corridors
  • Underground subways and parking garages
  • Transit stations, buses, railways and airports
  • Factories, utility and power companies, assembly and manufacturing areas
  • Shooting ranges, mechanical rooms and roof top surrounds
  • Broadcast and recording facilities
  • Religious and community centers
  • Public and multifamily buildings
  • And more…

CONTOUR® Ceiling Tiles

CONTOUR® Ceiling Tiles CONTOUR Ceiling Tiles are known for their excellent sound absorption properties, providing the best acoustical performance in the industry. With significantly more sound absorption than conventional ceiling tiles, CONTOUR reduces noise in a variety of settings including: offices, restaurants, call centers, auditoriums, and gyms.

Available in a wide range of designs and colors, CONTOUR Ceiling tiles offer limitless design potential in classic and contemporary environments. Custom patterns, including corporate logos, and color matching are also available.

Made from Class 1 fire-rated willtec® foam, CONTOUR tiles maintain their integrity in moist and humid environments without sagging. Tiles have a HPC-coated surface for added durability and easy cleaning with a damp cloth.

HARMONI Ceiling Tiles

HARMONI Ceiling Tiles The perfect blend of modern style and outstanding acoustical control, HARMONI Ceiling Tiles are a popular new addition to our product line. Made from Class 1 fire-rated willtec®, these affordably-priced tiles are the right noise control solution for classrooms, offices, conference rooms, listening rooms, home theaters, retail stores, corridors and any other interior area where ceiling tiles are used.

HARMONI Ceiling Tiles are available in two styles, each with a tegular (tile-like) edge. The Vista pattern has a smooth surface for a clean look, while the Tartan pattern provides a softly sculpted style. HARMONI tiles are HPC-coated for easy cleaning and durability.

HARMONI Ceiling Tiles will not sag or fade and can quickly and easily be installed after the room’s temperature and humidity level have been stabilized.

Back To Top

WHITELINE® Ceiling Tiles

WHITELINE® Ceiling Tiles With their smooth, white or black finish and sleek contemporary look, WHITELINE Ceiling Tiles are not only the best value on the market, they may very well be the new industry standard for conventional ceiling tiles.

Made from Class 1 fire-rated willtec®, these lightweight tiles are ideal for nearly any application, including offices, buildings, schools, churches, warehouses, conference rooms, entries and lobbies.

WHITELINE is guaranteed not to sag and can be easily integrated into any conventional ceiling suspension grid. With standard sizes ranging from 24″‘x24″‘ to 48″‘x48″, WHITELINE is also available in any custom size.

Ceiling Grid System

Ceiling Grid System Now you can have a ceiling grid system that blends beautifully with pinta’s or standard ceiling tiles. pinta’s Ceiling Grid System is offered in colors that complement the HPC coating or natural finish of our HARMONI, CONTOUR® and WHITELINE® Ceiling Tiles as well as our SQUARELINE® Metal Ceiling Tiles. Standard colors include white, almond, grey, satin chrome and black. Custom colors are also available.

Our commercial-quality ceiling grid system features standard 15/16” capped grid face and a double web design for added strength. It is also easy to install.

Features and Benefits

  • Intermediate ASTM load-bearing capabilities
  • Main runners have non-directional bayonet couplings
  • Integral cross-tee end tabs for positive locking and easy disassembly
  • Stepped-end cross-tee design resists twisting and provides finished appearance
  • Components feature hot-dipped galvanized steel web and capped face for superior corrosion resistance
  • All components – main runners and high-profile cross-tees – are manufactured from the same metal for superior strength and stability
  • Meets or exceeds building code requirements including Seismic Zones 0-2
  • Apply in any area where a drop-in ceiling is desired

Back To Top

Ceiling Clouds

WHISPERWAVE™ Ceiling Clouds

  • WHISPERWAVE™ Ceiling Clouds Curved accent acoustical control products
  • Exceptional acoustical control across all frequencies
  • Lightweight and easy to install

Applications

  • Classrooms
  • Cafeterias
  • Entertainment facilities
  • Multipurpose rooms
  • Indoor swimming pools
  • Offices, libraries
  • Religious facilities
  • Other large open areas

Back To Top

Noise Control Curtains

SONEX® Curtain Custom Enclosure System

SONEX® Curtain Custom Enclosure System SONEX Curtain Custom Enclosure Systems can be made from any combination of SONEX Curtain products to produce an effective and economical method of noise reduction for a wide variety of industrial applications.

  • High actual noise reduction up to 25dBA, depending on application.
  • Custom-engineered systems for almost any environment.
  • Quick and easy access to enclosed machinery and equipment for operation and maintenance.
  • Class 1 fire-rated.

These systems can be configured to create total or partial enclosures to meet almost any requirement. A successful, functional acoustical enclosure may require any number of available options, including roof-top panels, valances, corner treatments, view windows, ventilation baffles, exhaust fans and various curtain support frames.

SONEX® Curtain Barrier Backed

Applications

SONEX® Curtain Barrier Backed

SONEX Curtain Barrier Backed  is a composite that features sound absorptive willtec® foam quilted with a vinyl facing on one side, bonded to a reinforced noise barrier material on the other.  This product provides both excellent sound transmission loss and sound absorption performance. The standard facing material is a vinyl-coated fabric in grey, white, tan or black.  Other options for facing materials are also available.

SONEX Curtain Barrier Backed can be used as barriers, independent walls and partitions, or portable acoustical screens to isolate noisy machines or specific areas.  The combination of barrier and willtec in SONEX Curtain Barrier Backed contains and absorbs noise in almost any manufacturing environment where durability and dependability are required.

  • Isolate and absorb noise around compressors, punch presses, vibratory bowls, granulators, blowers, turning machines and any other demanding equipment or process.
  • Separate workstations in high-traffic areas.
  • Provide sound containment and absorption in high-abuse areas.
  • Custom made “acoustical jackets” on blowers, fans or compressor housing.
  • Suitable for some outdoor applications.

Back To Top

SONEX® Curtain Quilted Absorber

SONEX® Curtain Quilted Absorber SONEX Curtain Quilted Absorber combines the acoustical features of willtec®  foam with the advantages of durable, cleanable and abrasion-resistance facings.   These curtains can be customized to withstand a wide range of temperature limits and they are unaffected by humidity, dust, dirt, oils and most chemicals.

SONEX Curtain Quilted Absorber can be custom-designed with grommets and/or hook & loop fasteners, and can be constructed as baffles, roll goods or parts of an enclosure system. Suitable for a wide range of environments, SONEX Curtain QA can be used to treat manufacturing facilities, rooms, high-traffic areas, existing enclosures, or original equipment.  The standard facing material is a vinyl-coated fabric in grey, white, tan or black.  Other options for facing materials are also available.

Applications

  • Reduce reverberation in large manufacturing environments.
  • Improve communication in high-traffic areas and corridors.
  • Add absorption to pre-existing walls or partitions.
  • Line inside of welding booths with panels made with silicone-facing option.
  • Adhere to walls to reduce general noise level in rooms or buildings.
  • Fabricate with grommets or mechanical fasteners to hand as ceiling baffles.

SONEX® Curtain Barrier Septum

SONEX® Curtain Barrier Septum SONEX Curtain Barrier Septum combine sound absorbing and noise barrier properties into one product.  An effective “sandwich” of layers, SONEX Curtain Barrier Septum consists of quilted vinyl-faced layers of willtec® foam bonded on both sides of noise barrier material producing a curtain that both contains and absorbs noise. It is easily installed and can be formed into any configuration for customized acoustical enclosures or noise barrier walls.

Flexible barrier septum, high transmission loss (STC) ratings, impressive sound absorption (NRC) ratings, customized configurations, and tough, durable, washable facings make SONEX Curtain Barrier Septum an excellent choice for effective noise control on any size project.

Ideally installed in areas where noise sources are on both sides of the panels, SONEX Curtain Barrier Septum can be manufactured with grommets and hook & loop fasteners along each edge for use in an acoustical enclosure.  The standard facing material is a vinyl-coated fabric in grey, white, tan or black.  Other options for facing materials are also available.

Applications

  • Utilize as perimeter walls, separator walls or divider partitions between noise sources.
  • Use as a liner for interiors of pre-existing enclosures to further reduce noise levels.
  • Separate machine or work stations where both sides need sound absorption and noise containment.
  • Isolate and absorb noise around compressors, punch presses, vibratory bowls, granulators, turning machines or other demanding equipment or processes.
  • Use as walls of acoustical enclosures or partitions in manufacturing areas.
  • Improve sound transmission of standard doors to keep noise out of office areas adjoined to manufacturing areas.

Back To Top

Wall Panels

SONEX® Clean Panels

  • SONEX® Clean PanelsWashable, cleanable and durable
  • Sound absorption to reduce reverberation or echo
  • Easy to install ceiling tiles, wall panels and baffles
  • willtec® core is Class 1 fire-rated
Applications
  • Bottling and food processing plants
  • Clean rooms
  • Food preparation areas

FABRITEC Wall Panels

FABRITEC Wall Panels FABRITEC Wall Panels let you create a custom look using standard panels. These durable panels provide superior acoustical control in a variety of settings, including: schools, gymnasiums, restaurants, conference rooms, offices, auditoriums, entryways, and other high-traffic, open areas.

Made from Class 1 fire-rated willtec®, FABRITEC Wall Panels provide sound absorption comparable to bagged fibrous products using far less material, thickness and weight. The rugged and tackable exterior of FABRITEC panels can be covered with Guilford fabrics or other fabrics. Guilford fabric selections include a wide range of current colors and textures to complement, or blend with, any decor.

Lightweight FABRITEC Wall Panels are easy to install. Most installations do not require mechanical fasteners.

Back To Top

PHONSTOP™ Ceiling and Wall Tiles

  • PHONSTOP™ Ceiling and Wall Tiles Made from 100 percent recycled glass
  • Exceptional acoustical properties to reduce noise, reverberation and echo
  • Ideally suited for both interior and exterior applications
  • Two installation styles: direct apply using adhesive or lay-in pinta or any 15/16″ ceiling grid system
  • Impact, temperature, moisture, mold, pressure and acid resistant
  • Can be custom colored on-site using non-bridging paints
  • PHONSTOP Plaster provides a seamless appearance

Applications

  • Offices, schools, auditoriums and cafeterias
  • Sports centers, gymnasiums and indoor swimming pools
  • Staircases, hallways and corridors
  • Underground subways and parking garages
  • Transit stations, buses, railways and airports
  • Factories, utility and power companies, assembly and manufacturing areas
  • Shooting ranges, mechanical rooms and roof top surrounds
  • Broadcast and recording facilities
  • Religious and community centers
  • Public and multifamily buildings
  • And more…

SONEX® Classic and SONEX Junior Panels

  • SONEX® Classic and SONEX Junior Panels Famous anechoic wedge shape
  • Noise reduction coefficients (NRC’s) ranging from 0.75 to 0.80
  • Available with special colortec®  process
  • Panel size of 24″x48,” 2″ thick SONEX Classic and 24″x24,” 2″ thick SONEX Junior
Applications
  • Recording, broadcast studios and listening rooms
  • Machine enclosures and print shops
  • Indoor firing ranges
  • Museums or interactive display areas
  • Clubs, bars and restaurants

Back To Top

SONEX® One Wall Panels
  • SONEX® One Wall Panels Softly sculpted surface pattern
  • Excellent sound absorption across all frequencies
  • Helps reduce noise, unwanted sounds and reverberation in many types of interior environments
  • Panel size of 24″x48″ in 2″ or 3″ thickness
Applications
  • Retail stores
  • Printing press rooms
  • Production facilities
  • Aquatic and recreation centers
  • Educational facilities and daycare centers
SONEX® Pyramid Panels
  • SONEX® Pyramid Panels Bold, geometric pattern
  • Seamless installation with pinta’s acouSTIC™ adhesive
  • Excellent acoustic control
  • Panel size of 24″x24″ in 2″, 3″ or 4″ thickness
Applications
  • Displays, showrooms and museums
  • Machine rooms or manufacturing areas
  • Modern offices and building interiors
  • Recreational facilities
  • Recording studios and listening rooms
  • Restaurants and cafeterias
SONEX®  Valueline Panels
  • SONEX® Valueline Panels Excellent acoustic control across all frequencies
  • Subtle surface pattern
  • Easily mounts to any ceiling and/or wall surface with pinta’s AcouSTIC adhesive
  • Panel size of 24″x48″ in 1-1/2″, 1-7/8″ or 2-1/2″ thickness
Applications
  • Manufacturing facilities and industrial assembly areas
  • Classrooms and music rooms
  • Machine enclosure lining
  • Recreational facilities
  • Multi-purpose rooms
  • Restaurants and cafeterias

Back To Top

SONEX® Mini Panels
  • SONEX® Mini Panels Smaller convoluted surface pattern
  • Ideal for machine enclosures and other applications requiring thinner panels
  • Panel size of 24″x48″ in 1″ or 1-1/2″ thickness
SONEX Mini Panels provide excellent sound absorption, especially in environments requiring high frequency noise control. Made with pinta’s exclusive willtec® foam, SONEX Mini Panels are a safety-minded choice for use in machine enclosures and other confined spaces. willtec foam is Class 1 fire-rated according to ASTM E 84 for flame spread and smoke density. It can withstand constant temperatures above 300° F, and will char but not ignite at temperatures above 1100° F. willtec natural meets the corner burn test UL1715.
SONEX Mini Panels, available in natural or painted willtec, are easy to install on any wall and/or enclosure surface with pinta’s acouSTIC water-based adhesive.

WHISPERWAVE™ Panels

  • WHISPERWAVE™ Panels Curved accent acoustical control products
  • Exceptional acoustical control across all frequencies
  • Lightweight and easy to install
Applications
  • Classrooms
  • Cafeterias
  • Entertainment facilities
  • Multipurpose rooms
  • Indoor swimming pools
  • Offices, libraries
  • Religious facilities
  • Other large open areas

Back To Top

willtec®


Pinta’s proprietary willtec foam is made from porous melamine. A unique, flexible alternative to polyurethane, our willtec foam is an excellent sound control choice because it retains the acoustic qualities of polyurethane but is far less flammable.

willtec has a Class 1 fire rating, the best fire rating possible for a building material. It is flame- and chemical-resistant and, unlike polyurethane foams, it will not decompose or emit toxic gases when exposed to flame.

While polyurethane will start to break down at around 482°F, melamine foam can be exposed to constant temperatures up to 300°F, and short-term temperatures up to 482°F. It will char but will not ignite when exposed to temperatures as high as 1120°F.

In the past, melamine foam products have been more costly than polyurethane. But today’s technical and manufacturing advances have made this safer alternative price-competitive.

If you have any questions about the Illbruck Insulation Products we carry, contact us today.
